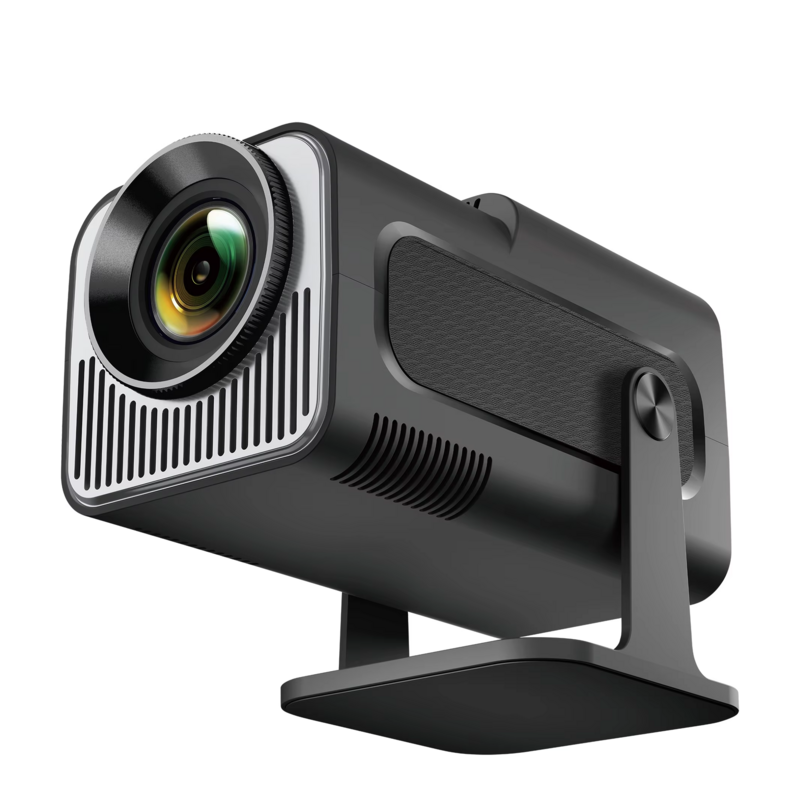

| Model Number | HY320 Mini | Brand Name | WEHOME |
|---|---|---|---|
| origin | China | Small Orders | Accepted |
| Product size | 220X104X101MM |
| Native Resolution | 1080P (1920X1080) |
| Color Temperature | 8000K（±10%） |
| Brightness(Lumens) | 390 Ansi LM |
| Contrast Ratio | 2000 |

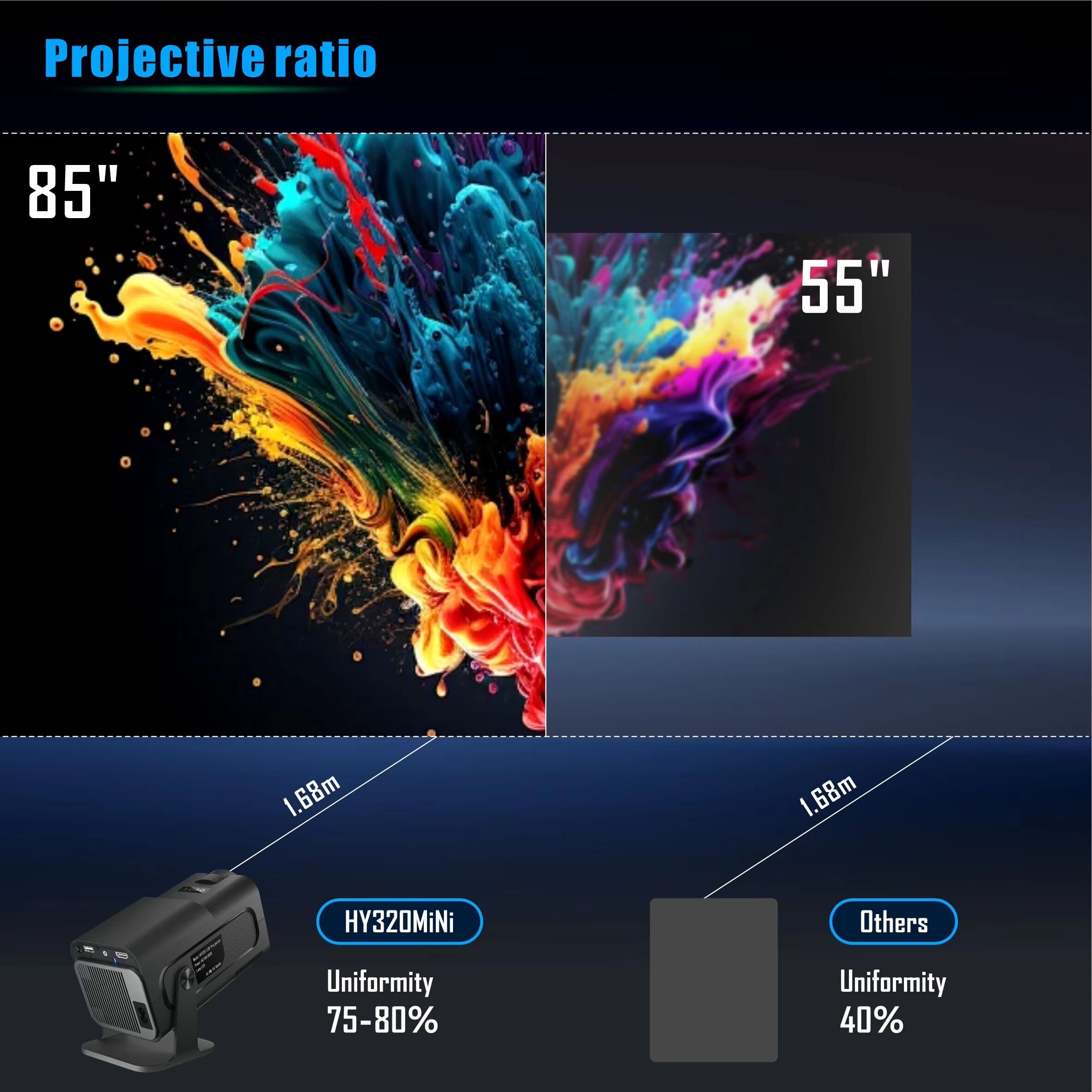

| Uniformity | 80% |
| Aspect Ratio | 16:9 |

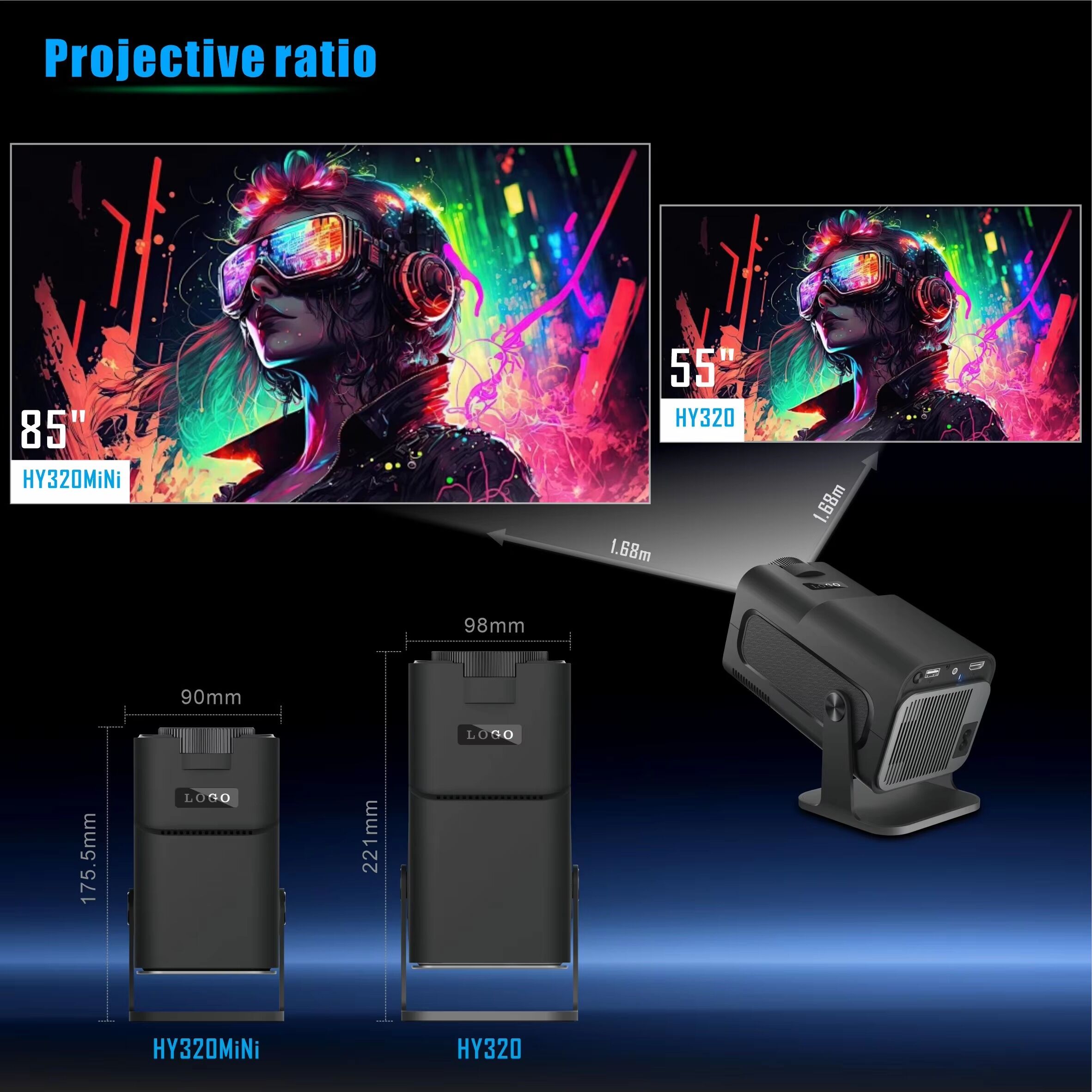

| Throw Ratio | 1.1:1 |
| Keystone Correction | automatic |
| Language | Support for multiple languages |
| Bulb Life | 50000 Hrs |
| Lamp Type | White LED module |
| Adjustment Mode | Manual focus |
| Operation Mode | Button pannel and remote control |

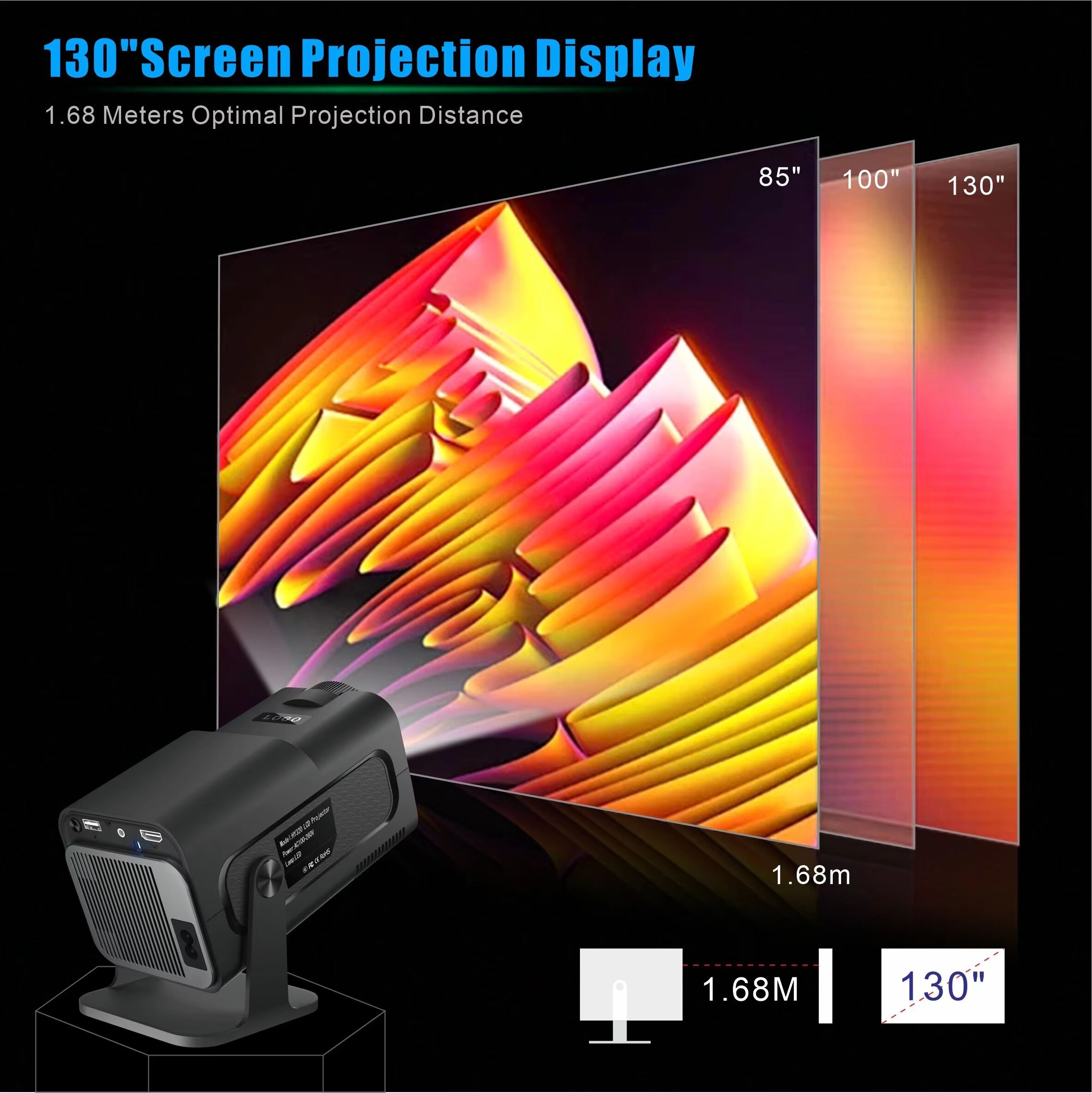

| Projection Distance | 1M-4M |
| Projection Size | 30-150 inch |
| Same screen mirroring | Airplay/MiraCast |
| system | Android 11 |
| CPU | Allwinner H713 |
| Quad-CoreARM Cortex-A53 | |
| GPU | Mali-G31supports OpenGL ES3.2,Vulkan 1.1,and OpenCL2.0 |
| Buffer Memory(RAM) | 1GB |
| Storage(ROM) | 8GB |
| WIFI | AW869A -- Dual band WiFi6 + BT5.0 Module |
| BT | Bluetooth 5.0 |
| Video File | Full-format decoding including HEVC/VP9/AVS2/AVC 4K@30fps and MPEG1/MPEG2/AV1 1080p/60fps decoding and so on |
| Audio File | MP3/WMA/ACC |
| Image File | JPG,BMP,PNG,support image scaling |
| Key control | power button |
| remote control | Infrared remote controller |
| Speaker | 1X3W |
| Bluetooth audio | Support connection |
| Optical power | 50W |
| Overall Power Consumption | 60W |
| Working Voltage(V) | AC90-260V/50-60HZ |

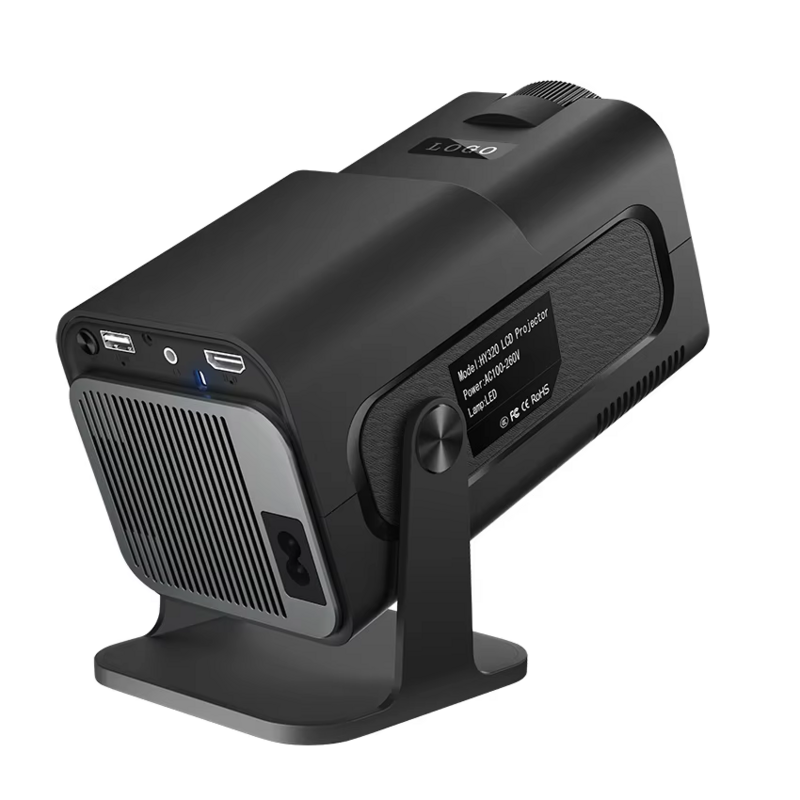

| interface | USB*1/HD *1/AUDIO*1/AC*1 |
| Power indicator light | LED (red when powered on, green when turned on) |

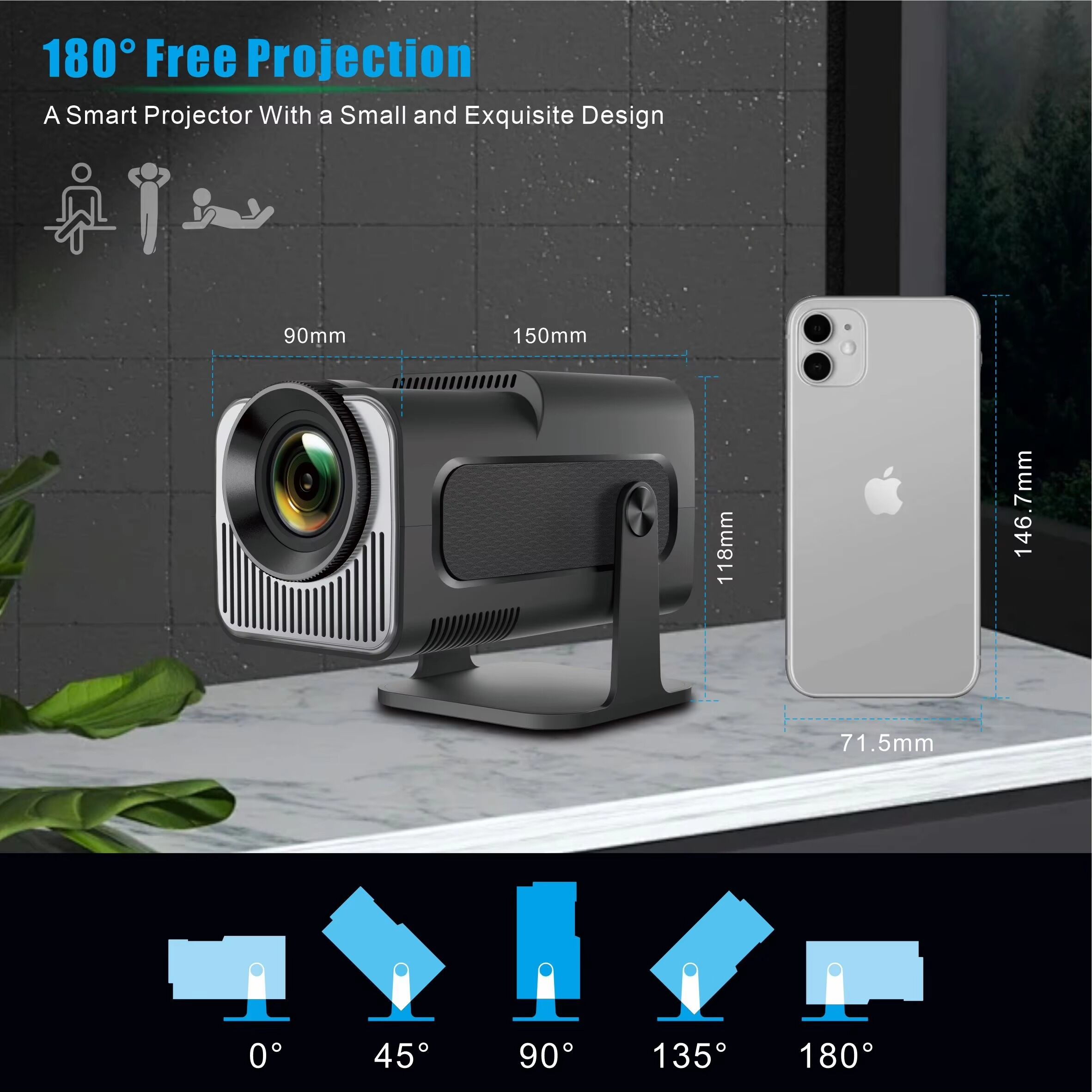

| Projection Mode | Rotate Front,Rotate Rear,Rotate Ceiling,Rotate Rear Ceiling |
| Standby power | 2.5W |

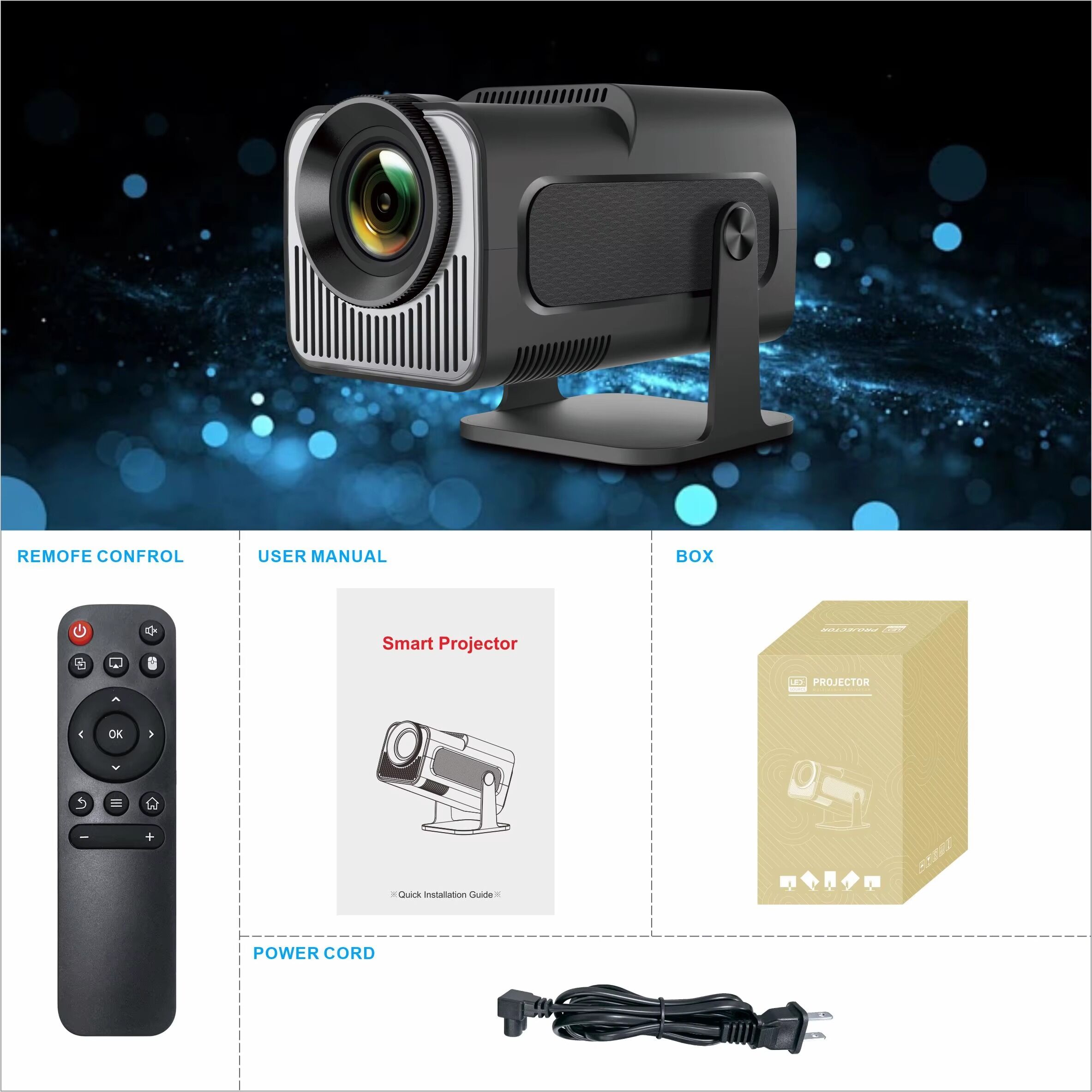

| Standard Accessory | Gif BOX、User Manual，Power cord，Remote control, |
| FOB Port | Shenzhen | Lead Time | 2–5 days |
|---|---|---|---|
| Weight per Unit | 800.0 Grams | Dimensions per Unit | 10.0 x 10.0 x 5.0 Centimeters |
| HTS Code | 8510.00.00 00 | Units per Export Carton | 20.0 |
| Export Carton Dimensions L/W/H | 40.0 x 50.0 x 60.0 Centimeters | Logistics attributes | Common |
| Export Carton Weight | 500.0 Grams | ||
