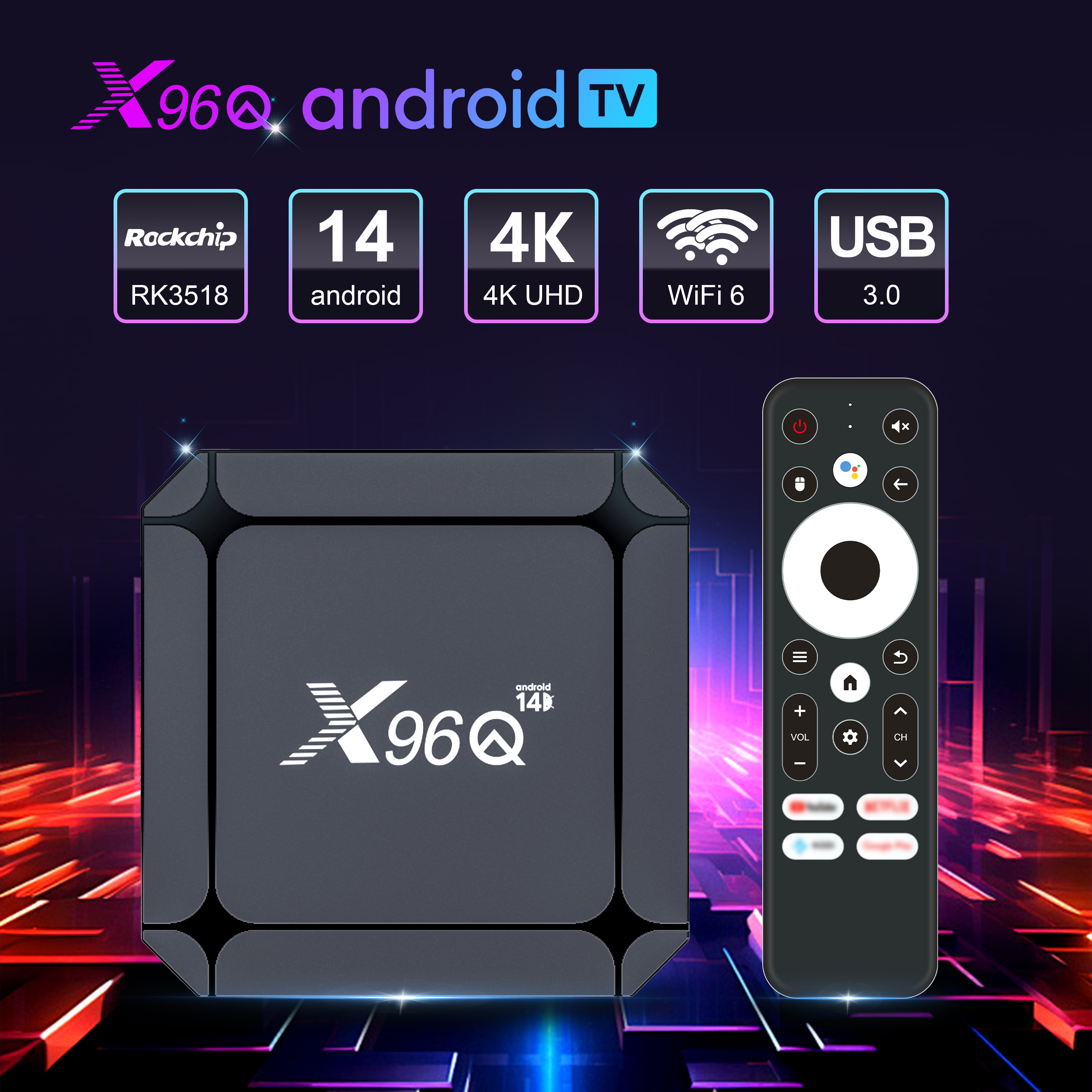

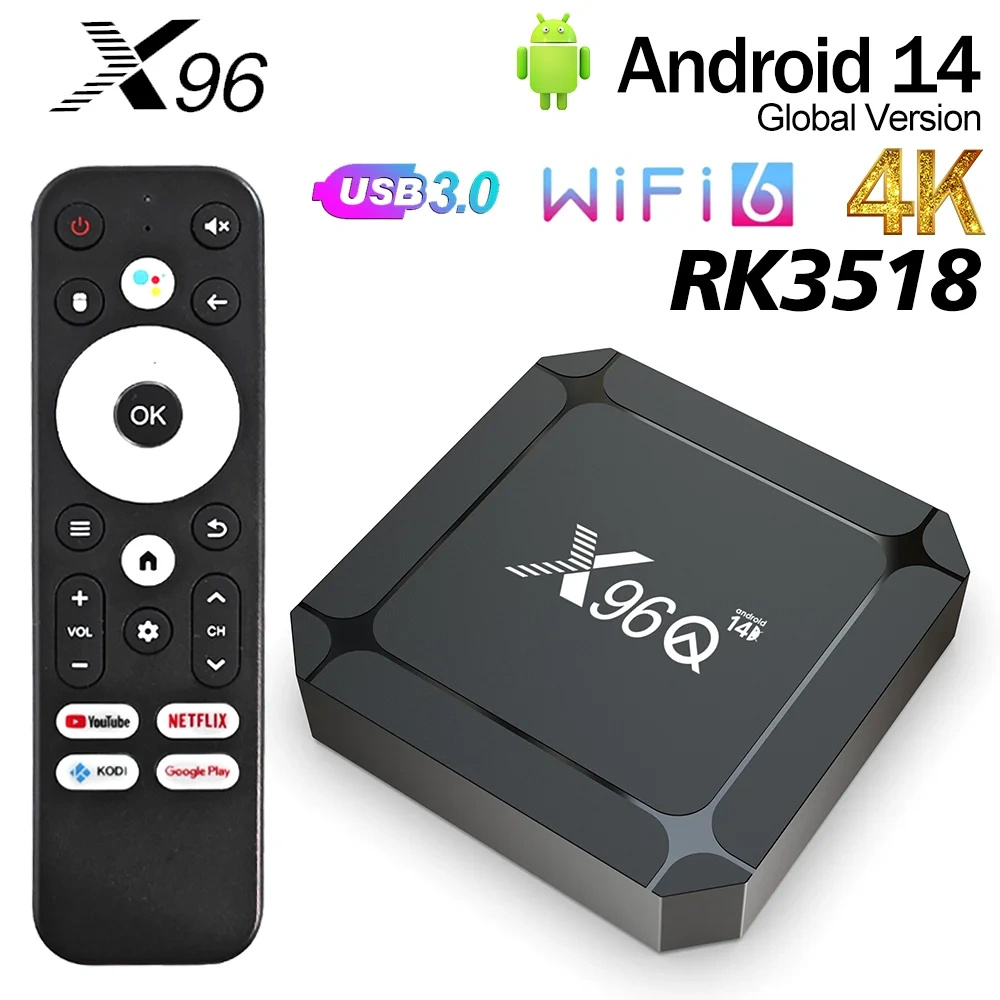

Basic parameters X96Q Android 14 |
||||
|

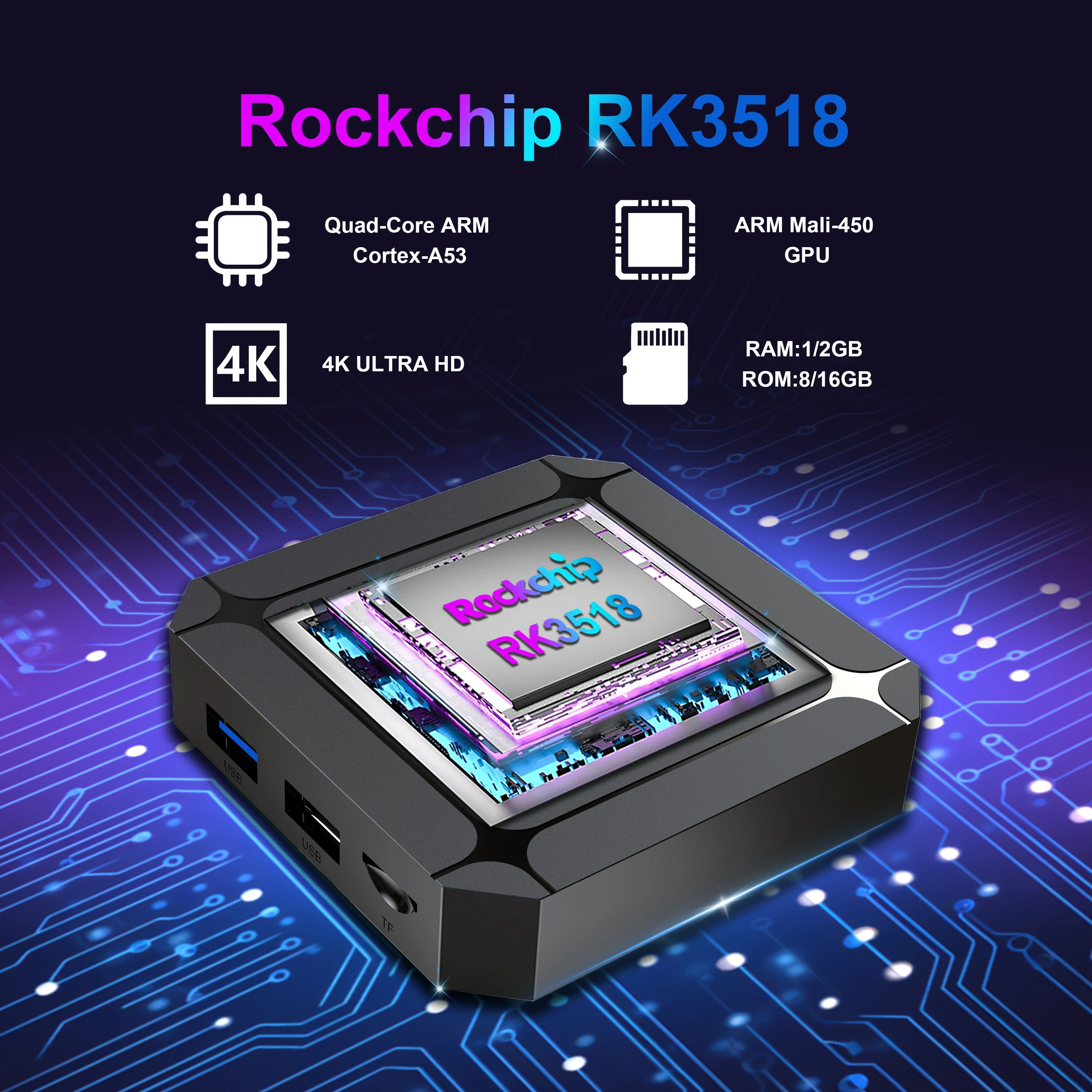

CPU |
Chipset |
RK3518 |
||
|
Architecture |
Quad-Core Cortex-A53 |
|||
|
GPU |
Chipset |
ARM Mali-450 GPU |
||
|
Architecture |
OpenGL ES 1.1/2.0 and OpenVG 1.1 support |
|||
|
RAM |
Capacity |

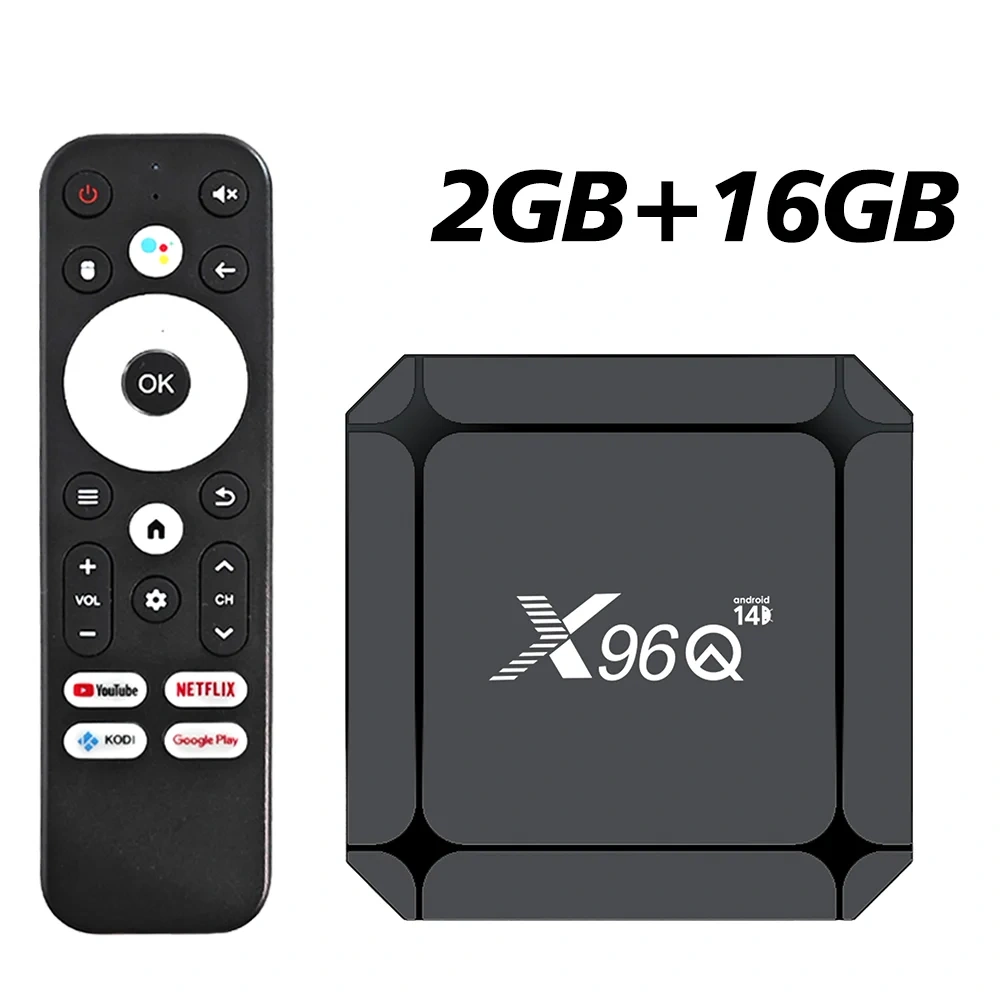

1GB (2GB Optional) |
||
|
ROM |
Capacity |
8GB (16/32GB Optional) |
||
|
External storage |
USB Storage Devices |
Supported |
||
|
Micro SD card |
Supported |
|||
|
Software |
||||
|
Operating system |
OS Version |
Android 14 |
||
|
Language |
Multi-Language |
|||
|
Multimedia |
Video |
* Video Decoder |
||
|
H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps |
||||
|
H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps |
||||
|
AVS2 4KX2K @60fps |
||||
|
MPEG-1, Main profile, up to 1080P @ 60fps |
||||
|
MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps |
||||
|
MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps |
||||
|
AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps |
||||
|
AVS-P16 (AVS+), up to 1080P @ 60fps |
||||
|
H.263, up to 576P @ 60fps |
||||
|
VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps |
||||
|
* Video Encoder |
||||
|
Support video encoder for H.264, HP@level4.2 |
||||
|
H.264 maximum frame rate is up to 1920x1080 @60fps |
||||
|
Capable of encoding HEVC Main Profile @ L4.1 High-tier |
||||
|
H.265 resolution and frame rate are up to 1920x1080 @60fps |
||||
|
JPEG encoder included |
||||
|
Audio |
Serial Audio Interface |
|||
|
SPDIF |
||||
|
Audio CODEC |
||||
|
Image |
HD JPEG、BMP、GIF、PNG、TIF |
|||
|
Network service |
||||
|

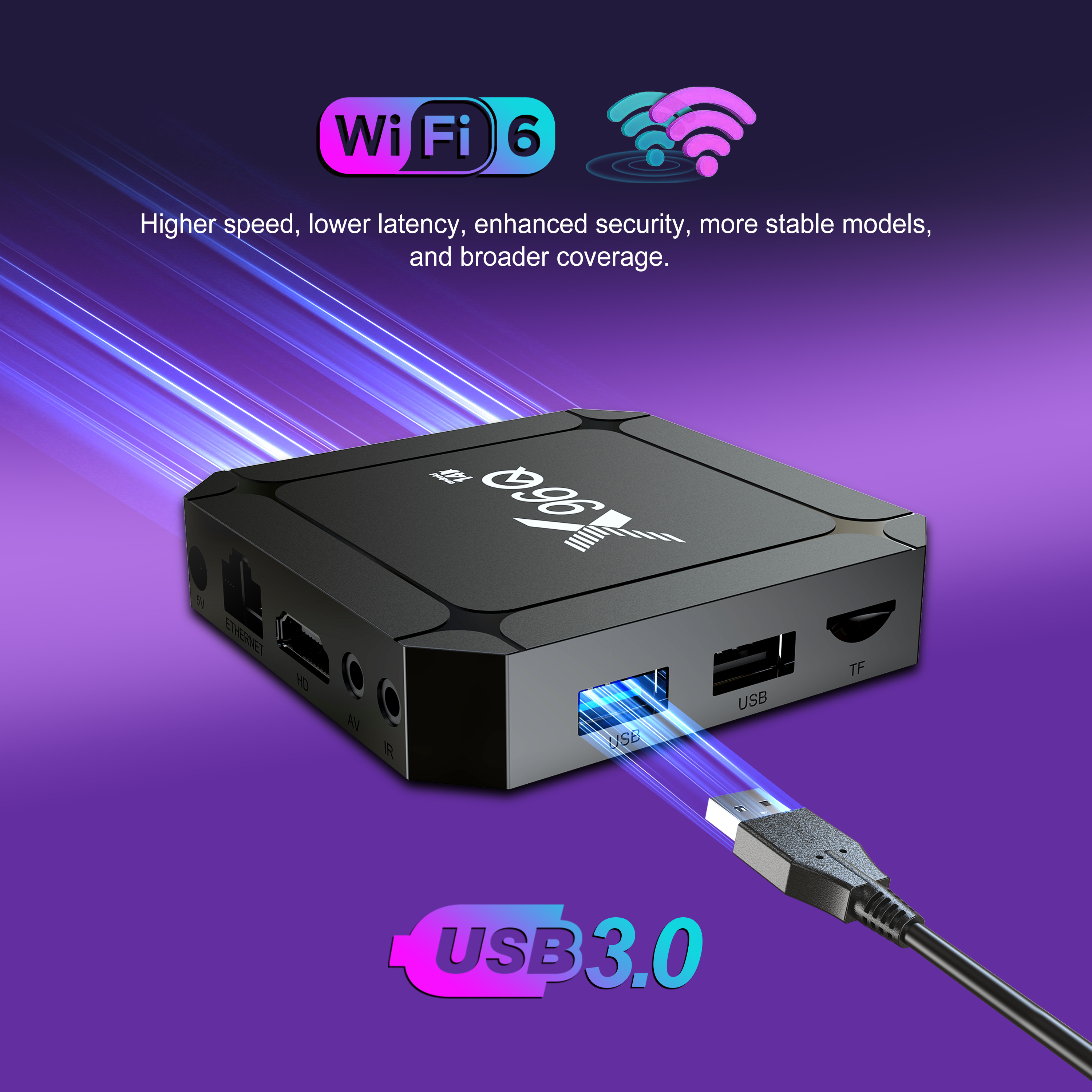

Wi-Fi |
Type |
Support WiFi IEEE 802.11 b / g / n / ac / ax |
||
|
Frequency |
Support 2.4GHz/5GHz WiFi 6 |
|||
|
Antenna Type |
Single antennas |
|||
|
Bluetooth |
Bluetooth |
Support BLE |
||
|

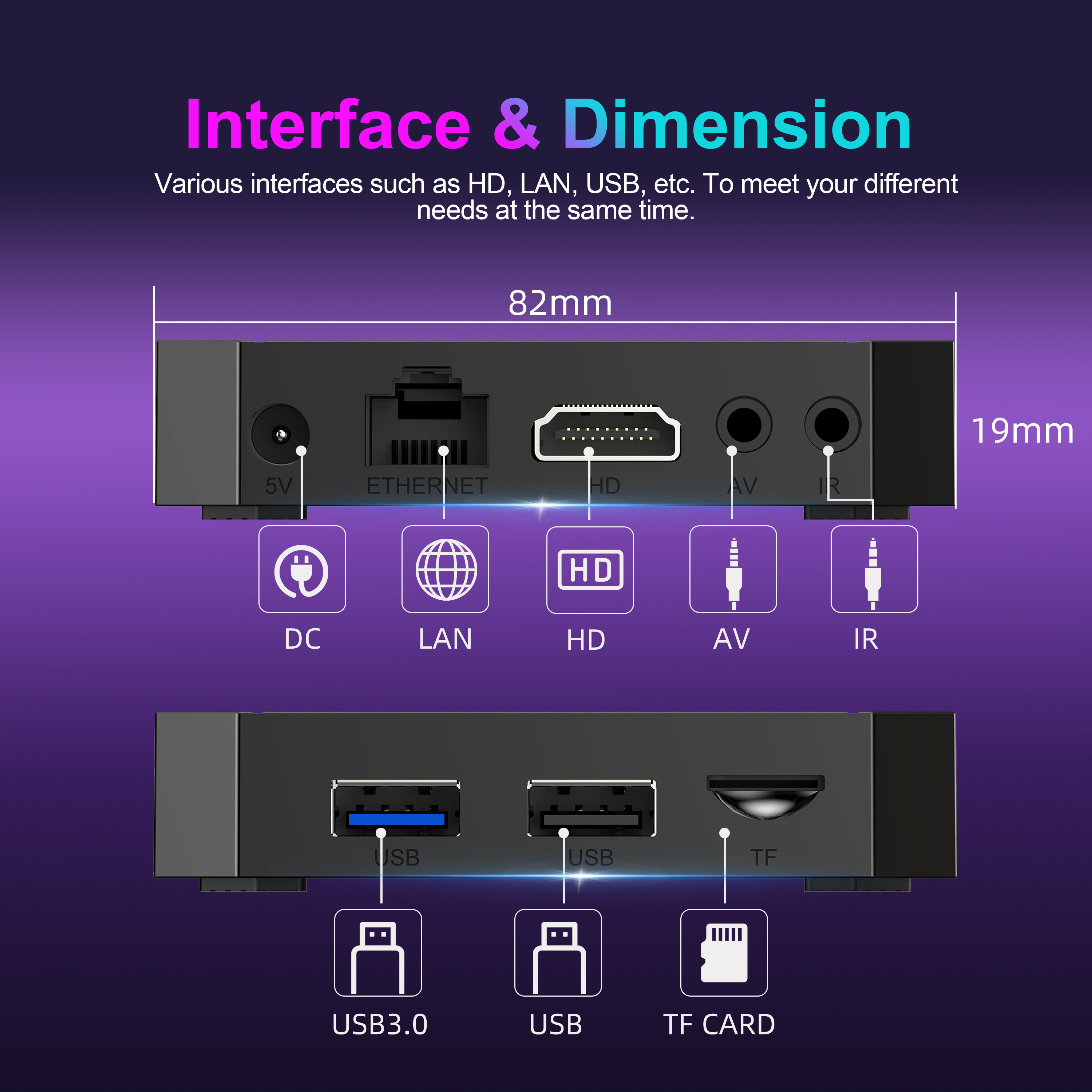

Interface |
||||
|
Charge |
DC connector |
DC IN(5V/2A) |
||
|
Video output |
HD |
4K*2K UHD Output, HD 1.4/2.0 |
||
|
IR Reciver |
On board |
Remote Reciver Connect |
||
|
Micro SD |
External memory |
Support |
||
|
USB port |
USB host |
USB3.0 *1 |
||
|
USB2.0 *1 |
||||
|
Ethernet |
Ethernet |
100M Ethernet |
||
|
Appearance |
||||
|
Body Material |
Plastic |
|||
|
Color |
Black |
|||
|
Size |
82*82*17 mm |
|||
