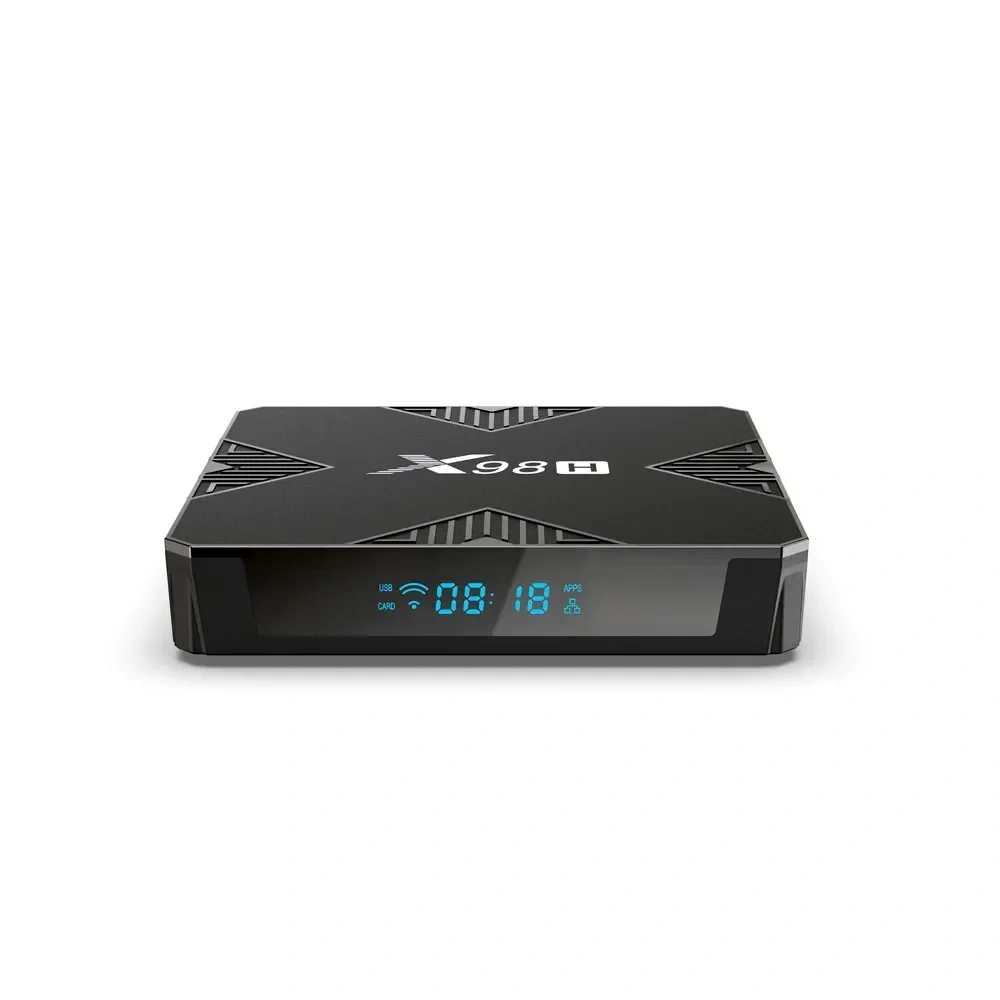

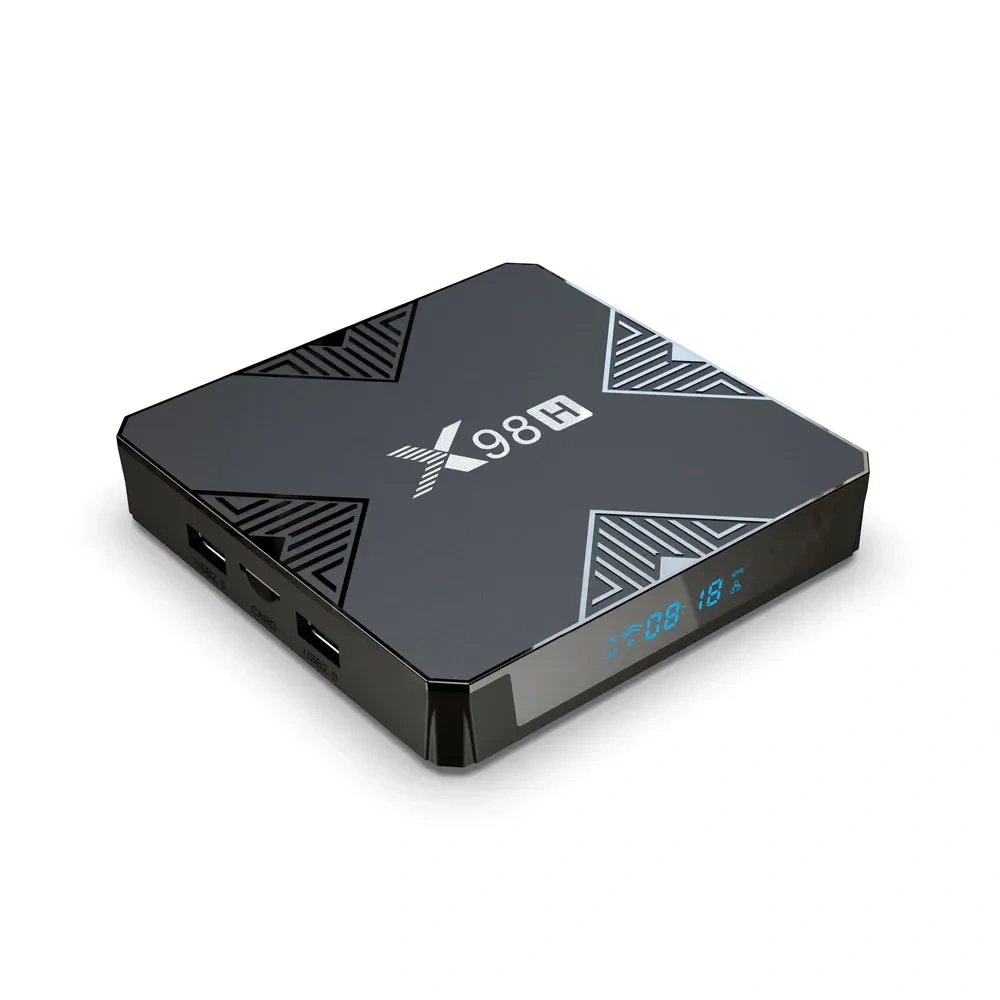

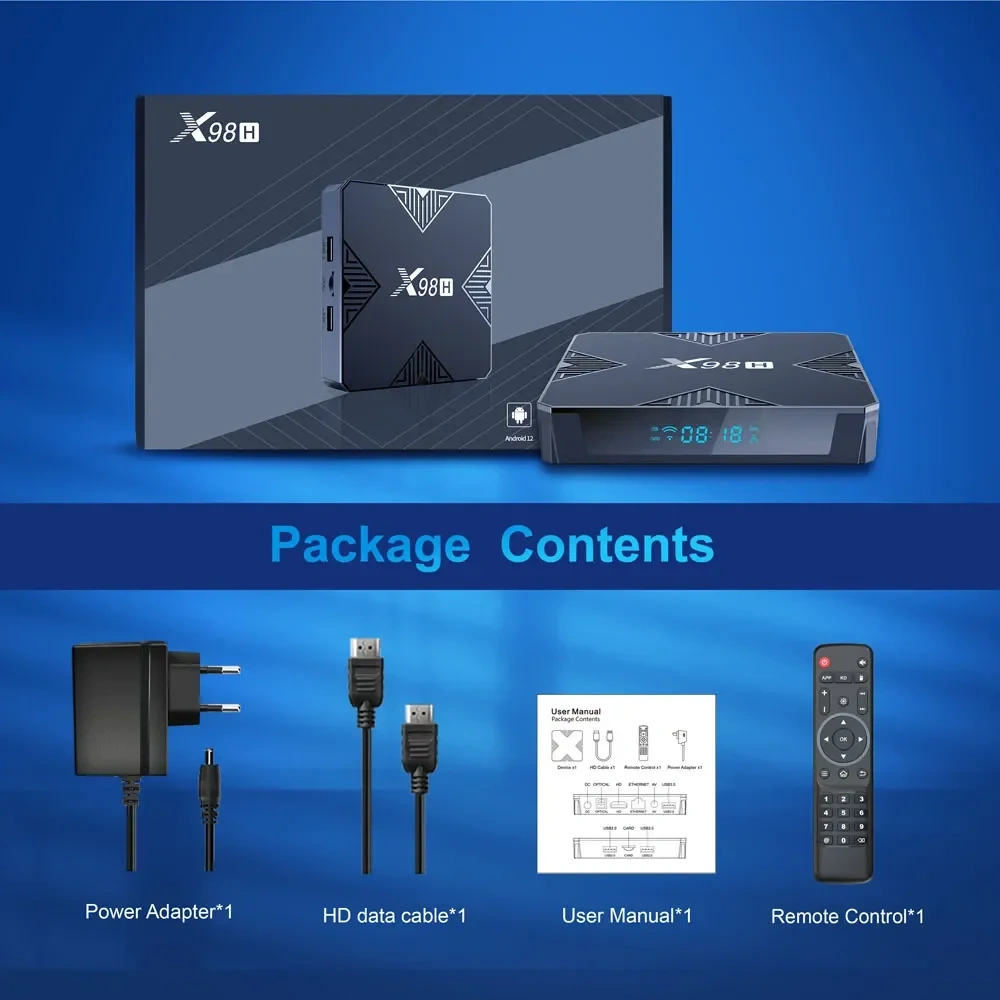

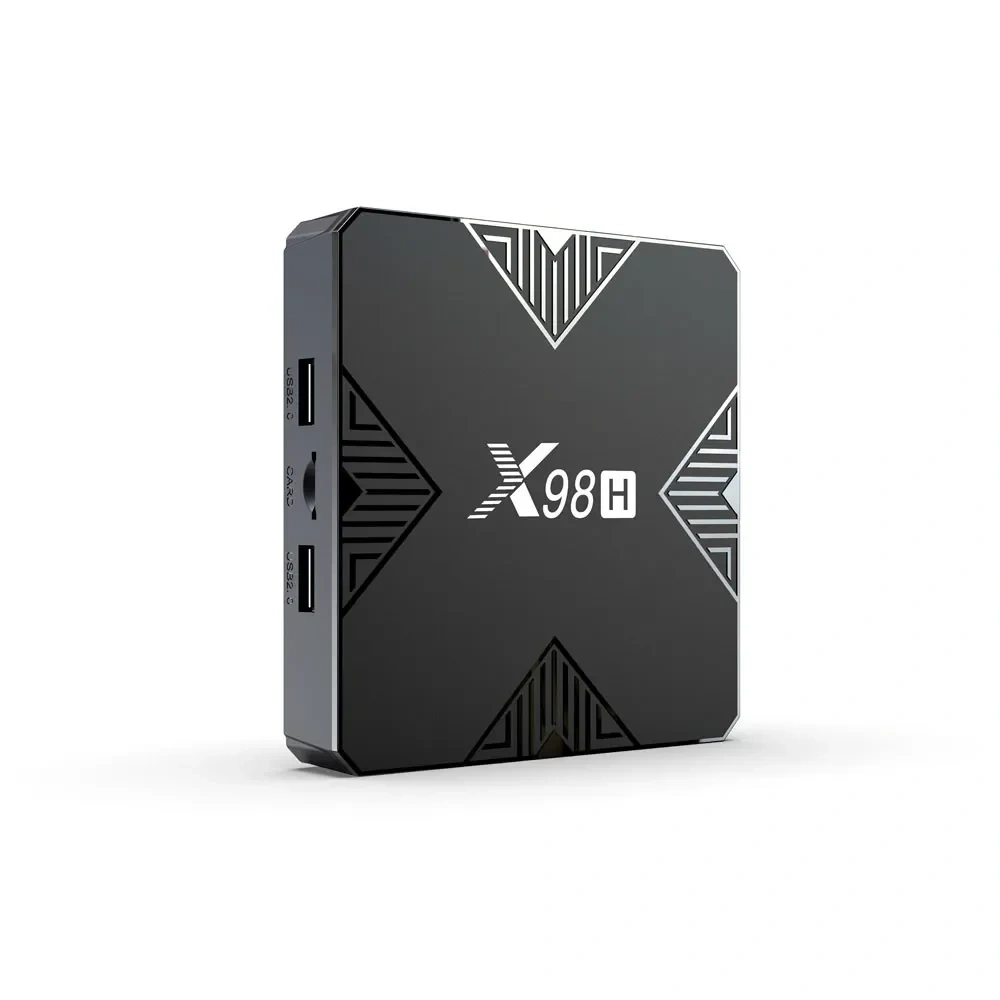

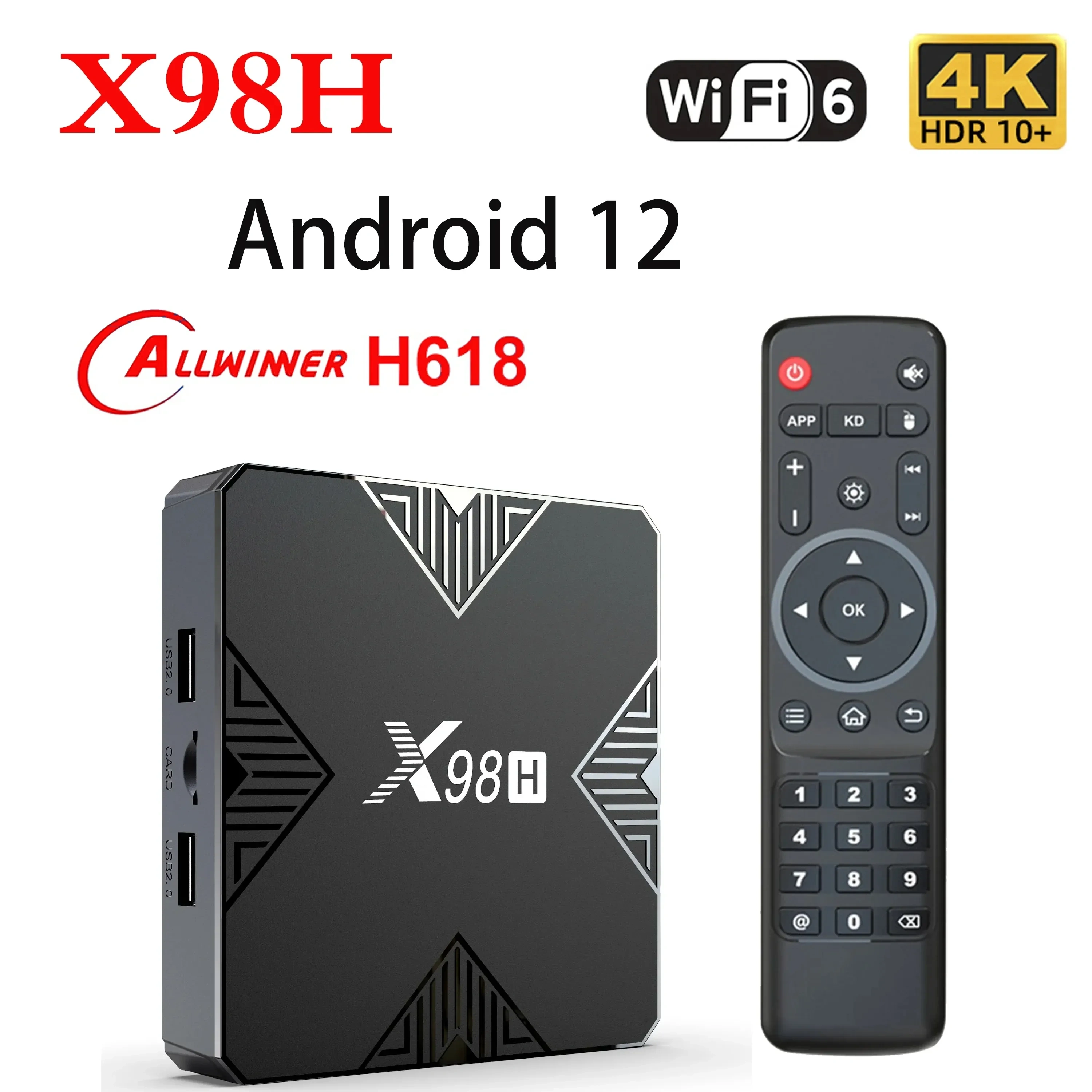

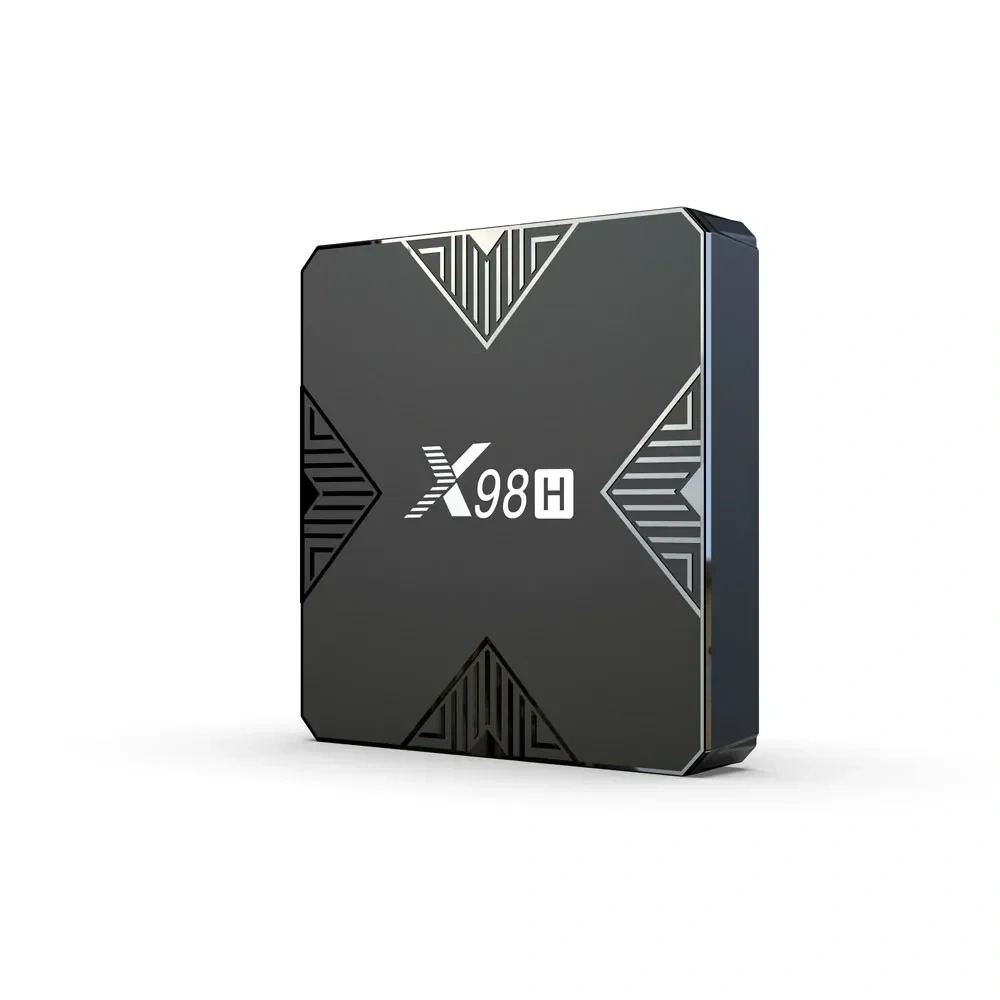

X98H Android 12.0 Allwinner H618 100M LAN Dual Wifi6 2.4G 5G 4K Media Player 4G 32G H.265 HDR Set Top Box Smart TV BOX
Highlights
1, Allwinner H618 Quad Core ARM Cortex A53;
2, GPU: Mali G31 MP2;
3, OS: Android 12.0;
4, Storage: DDR3 2GB/4GB, eMMC 16GB/32GB ;
5, Support: H.265, 6K@30fps, 4K@60fps, HDR;
6, Support: 10/100M RJ45, Wifi6, BT5.X;
7, Support: Firmware Wireless Upgrade(OTA).
8, There are Two Options for X98H Box:
A: 2GB+16GB+100M+Wifi6+BT5.X;
B: 4GB+32GB+100M+Wifi6+BT5.X;
Technical Data
Product Model | X98H | |||
Basic parameters | ||||
CPU | Chipset | Allwinner H618 | ||
Architecture | Quad core ARM Cortex A53 | |||
GPU | Chipset | Mali G31 MP2 | ||
RAM | Capacity | 4GB (2GB Optional) | ||
ROM | Capacity | 32GB (16GB Optional) | ||
External storage | USB Storage Devices | Supported | ||
Software | ||||
Operating system | OS Version | Android 12 | ||
Language | Multi-Language | |||
Multimedia | Video | Video Decoder: | ||
H265 Main10@L5. 1 decoder up to 4K@60fps or 6K@30fps | ||||
VP9 Profile 2 decoder up to 4K @ 60fps | ||||
AVS2 Jizhun 10bit decoder up to 4K @ 60fps | ||||
H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps | ||||
Multi-format 1080p @ 60fps video playback formats ,including H.264 BP/MP/HP , H 263 BP , VP8 , MPEG-1 MP/HL ,MPEG-2 MP/HL , MPEG-4 SP/ASP @ L5 , AVS +/AVS JizhunWMV9/VC1 , etc | ||||
Video encoder: | ||||
H.264 BP/MP/ HP encoder up to 4K@25fps or 1080p @ 60fps JPEG snapshot performance of 1080p @ 60fps | ||||
Audio | MP3, AAC, WMA, FLAC, Ogg. | |||
Image | HD JPEG,BMP,GIF,PNG,TIF | |||
Network service | ||||
Wi-Fi | Type | IEEE802. a/b/g/n/ac /ax | ||
Frequency | 2.4GHZ , 5.8GHZ | |||
Antenna Type | Inside antennas | |||
Bluetooth | Bluetooth | BT5.0+ | ||
Interface | ||||
Charge | DC connector | DC 5V- 2A | ||
Video output | HD | 1* 4K 2K Output, HD 2.0a | ||
CVBS | Support PAL/NTSC | |||
Audio | OPTCAL | 1 * SPDIF | ||
Ethernet | Ethernet | 1*Default 100M | ||
TF Card | External memory | 1* TF Card | ||
USB port | USB Host | 3 * USB 2.0 | ||
Upgrade | KEY | Update firmware | ||
Others | RTC | Optional | ||
Pictures

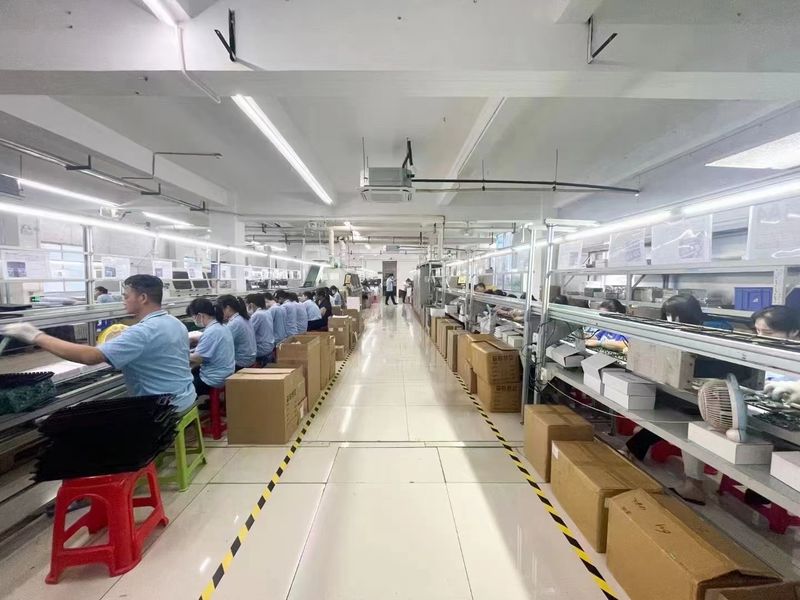

| Machinery and Equipment Used | The machines and equipment used in the manufacture of set-top box mainly include injection molding machines, electronic wiring harness processing equipment, welding equipment, circuit board assembly equipment, etc. | Awards and Other Recognitions | CE, FCC, RoHS |
|---|---|---|---|
| Procedures and Practices | The machines and equipment used in the manufacture of set-top box mainly include injection molding machines, electronic wiring harness processing equipment, welding equipment, circuit board assembly equipment, etc. | ||

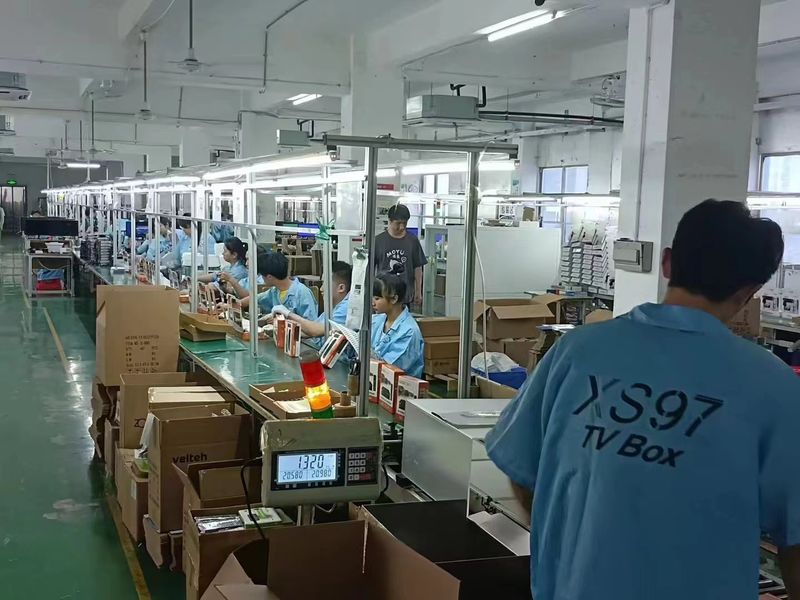

| Description of Quality Control/Technical Support Department | Quality management is a management method aimed at improving the quality of products or services, which involves various aspects within an organization, including design, production, sales, and service, to ensure that products or services meet customer needs and expectations. In quality management, the most important thing is to put quality first, which means that organizations must always focus on the quality of products or services and constantly strive to improve them. | Quality Control Procedures | Pre control, in-process control, and post control of quality. Plan and control in advance, exercise self-control and monitoring during the process, and correct deviations afterwards. This system process includes the planning and pre control of quality objectives, the control of preparation work status before quality activities according to the quality plan, behavioral constraints on quality activities, accepting supervision and control from others while self-restraint, as well as evaluating and recognizing the results of quality activities and correcting quality deviations. |
|---|
| Factory Size | 1500 Square Metre | No. of Production Lines | NA |
|---|---|---|---|
| Annual Output Value | NA | Number of Production Staff | 40 to 59 |
| Contract Manufacturing | NA | Number of QC Staff | 5 to 9 |
| Year Established | 2019 | Number of R & D Staff | 10 to 19 |
| Address | Building 3, Bantian Third Industrial Zone, Longgang District, Shenzhen, Guangdong, China | ||
| Materials/Components Used | All of our raw materials and accessories are sourced, 100% from China, and are truly made in China. | Site Advantages | Coastal area of the South China Sea: Shenzhen is located in the coastal area of the South China Sea, which provides an excellent deep-water port and convenient transportation conditions for the production and export of set-top boxes. Adjacent to Hong Kong: Shenzhen is adjacent to Hong Kong, and this geographical advantage is conducive to undertaking industrial transfer from Hong Kong, as well as facilitating the introduction of advanced technology and management experience from Hong Kong, promoting technological upgrading and product innovation in set-top box factories. |
|---|
| Total Capitalization | US$100,000 to 199,999 | Country / Region: | China |
|---|---|---|---|
| Year Established | 2019 | Total Employees | 20 to 29 |
| Business Type |
|
||
| Total Annual Sales | US$50,000 to 99,000 | Export Percentage | 100 percent |
|---|---|---|---|
| OEM Service | Yes | Small Orders Accepted | Yes |
| Brand Names | Wehome is committed to creating a seamless and convenient user experience, with a focus on design, functionality, and reliability. Our products are designed to enhance everyday life and make technology more accessible to everyone. | Payment Terms | TT |
| Main Competitive Advantages | ODM (Original Designing & Manufacturing), OEM Capability, Production Capacity | Other Competitive Advantages | NA |
| Major Customer | NA | Export Markets |
|
